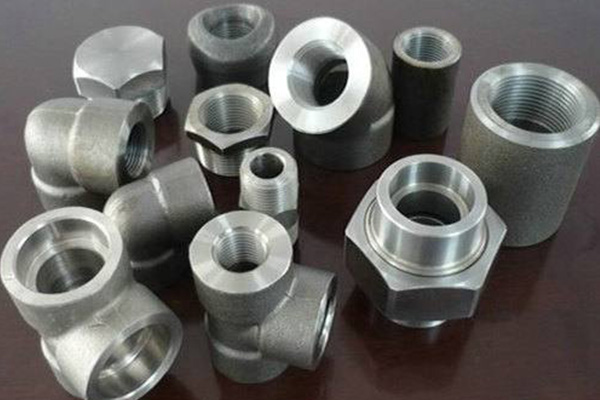

Available Forms of SS 347/347H Forged Fittings

Stainless Steel 347/347H Forged Fittings Specification

Specifications : ASTM / ASME A182 / SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.

Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)

Class/Pressure : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

B16.11 Stainless Steel 347/347H Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS GOST EN
SS 347 1.4550 S34700 SUS 347 08Ch18N12B X6CrNiNb18-10
SS 347H 1.4961 S34709 SUS 347H - X6CrNiNb18-12

ASTM A182 SS 347/347H Forged Fittings Chemical Composition

Element SS 347 SS 347H
C 0.08 max 0.04 – 0.10
Mn 2 max 2 max
Si 1 max 1 max
P 0.045 max 0.045 max
S 0.030 max 0.030 max
Cr 17 - 20 17 - 19
Ni 9 - 13 9 - 13
Cb 10xC – 1.10 8xC – 1.10
Fe 62.74 min 63.72 min

Stainless Steel S34700 / S34709 Forged Fittings Mechanical & Physical Properties

Element SS 347/347H
Density 8.0 g/cm3
Melting Point 1454 °C (2650 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Stainless Steel 347/347H Forged Fittings Application

SS 347/347H Forged Fittings in various Application Industries
  Stainless Steel 347/347H Forged Fittings uses in Food Processing Industry
  Stainless Steel 347/347H Socketweld Fittings uses in Fabrication Industry
  Stainless Steel 347/347H Forged Fittings uses in Oil and Gas Industry
  UNS S34700/S34709 Forged Threaded Elbow uses in Chemical Industry
  Grade 347/347H Stainless Steel Forged Fittings uses in Plumbing
  347/347H SS Screwed Fittings uses in General Purpose Applications
  Stainless Steel 347/347H Socketweld Equal Tee uses in Heating
  SS 347/347H Screwed Unequal Cross uses in Water Supply Systems
  ASTM A182 347/347H Steel Forged Fittings uses in Power Plant
  SS 347/347H Socketweld Fittings uses in Paper & Pulp Industry
  SS 347/347H Threaded Fittings uses in Defence Industry
  SS 347/347H Forged Union uses in Construction industry
