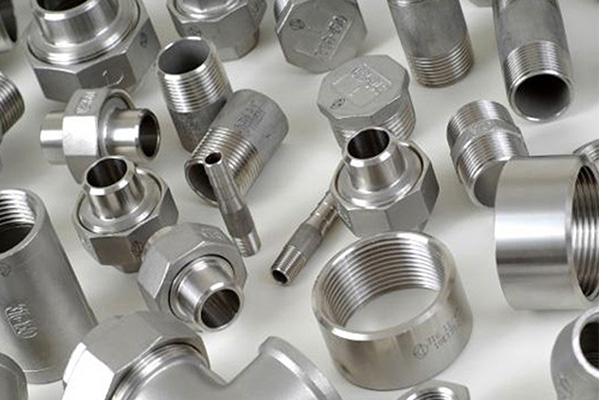

Available Forms of SS 304H Forged Fittings

Stainless Steel 304H Forged Fittings Specification

Specifications : ASTM / ASME A182 / SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.

Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)

Class/Pressure : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

B16.11 Stainless Steel 304H Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS
SS 304H 1.4301 S30409

ASTM A182 SS 304H Forged Fittings Chemical Composition

Element SS 304H
C 0.10 max
Mn 2.0 max
Si 0.75 max
P 0.045 max
S 0.03 max
Cr 18 – 20
Ni 8 – 10.5

Stainless Steel S30409 Forged Fittings Mechanical & Physical Properties

Element SS 304H
Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Stainless Steel 304H Forged Fittings Application

SS 304H Forged Fittings in various Application Industries
  Stainless Steel 304H Forged Fittings uses in Food Processing Industry
  Stainless Steel 304H Socketweld Fittings uses in Fabrication Industry
  Stainless Steel 304H Forged Fittings uses in Oil and Gas Industry
  UNS S30409 SS Forged Threaded Elbow uses in Chemical Industry
  Grade 304H Stainless Steel Forged Fittings uses in Plumbing
  304H SS Screwed Fittings uses in General Purpose Applications
  Stainless Steel 304H Socketweld Equal Tee uses in Heating
  SS 304H Screwed Unequal Cross uses in Water Supply Systems
  ASTM A182 304H Steel Forged Fittings uses in Power Plant
  SS 304H Socketweld Fittings uses in Paper & Pulp Industry
  SS 304H Threaded Fittings uses in Defence Industry
  SS 304H Forged Union uses in Construction industry
