| SS 317/317L Forged 90 Deg Elbow |
| SS 317 Forged 45 Deg Elbow |
| SS 317L Forged Cap Exporter |
| Steel 317 Socket Weld Tee |
| SS 317L Socket Weld Cross |
| SS S31700 Forged Coupling |
| SS 317/317L Threaded Hex Plug |
| SS 317L Screwed Street Elbow |
| SS 317 Threaded Union Stockist |
| SS 317L Austenitic Steel End Cap |
| SS 317 Screwed Pipe Nipple |
| SS 317/317L Threaded Bushing |

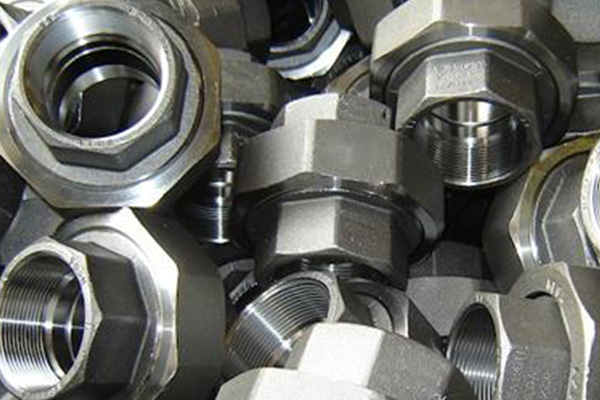

Lanco pipe and fittings are known to be one of the best and reputed manufacturers of Stainless Steel 317/317L Forged Fittings. They offer their clients best quality of forged fittings as per their demand and requirement. Well, talking about forged fittings and its added material then stainless steel 317/317L is high tensile strength and can withstand an elevated temperature. Because of its excellent and high corrosion resistance, it is used in various chemical processing industries. Being the reputed manufacturer of stainless steel forged fittings they deliver quality products at affordable price and on time. There are several types of forged fittings available such as reducers, tee, elbow, socket weld and threaded fittings.
On the other hand, if we talk about forged fittings specification and standards then these fittings cover international and national specifications and standards including ASTM A182 & ASME SA182 standards. Moreover, these forged fittings are available in different sizes that range from 1/8 NB to 4 NB and in different pressure classes like 2000 LBS, 6000LBS, and 9000LBS. To know the quality and capability of these forged fittings they are inspected and tested by quality experts and inspection agencies. Different tests are done such as radiography test, hardness test, flattening test, flaring test. When all these tests are done they offer raw material test certificate, mill test certificate, and third-party inspection report.
Stainless Steel 317/317L Forged Fittings are packed in the excellent quality of plastic wrapper and then packed in wooden cases or boxes so that they won’t catch rust or get damaged due to unconditional accidents or at the time of transportation.
Stainless Steel 317/317L Forged Fittings Specification
Specifications : ASTM / ASME A182 / SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.
Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class/Pressure : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings
B16.11 Stainless Steel 317/317L Forged Fittings Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | - |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
ASTM A182 SS 317/317L Forged Fittings Chemical Composition
| Element | SS 317 | SS 317L |
| C | 0.08 max | 0.035 max |
| Mn | 2 max | 2 max |
| Si | 1 max | 1 max |
| P | 0.045 max | 0.045 max |
| S | 0.030 max | 0.030 max |
| Cr | 18 - 20 | 18 - 20 |
| Ni | 11 - 15 | 11 - 15 |
| Mo | 3 - 4 | 3 - 4 |
| Fe | 57.845 min | 57.89 min |
Stainless Steel S31700 / S31703 Forged Fittings Mechanical & Physical Properties
| Element | SS 317/317L |
| Density | 8.0 g/cm3 |
| Melting Point | 1455°C (2650°F) |
| Tensile Strength | Psi – 89900 , MPa – 620 |
| Yield Strength (0.2%Offset) | Psi – 45000 , MPa – 310 |
| Elongation | 45 % |
Stainless Steel 317/317L Forged Fittings Application
| Stainless Steel 317/317L Forged Fittings uses in Food Processing Industry |
| Stainless Steel 317/317L Socketweld Fittings uses in Fabrication Industry |
| Stainless Steel 317/317L Forged Fittings uses in Oil and Gas Industry |
| UNS S31700 / S31703 SS Forged Threaded Elbow uses in Chemical Industry |
| Grade 317/317L Stainless Steel Forged Fittings uses in Plumbing |
| 317/317L SS Screwed Fittings uses in General Purpose Applications |
| Stainless Steel 317/317L Socketweld Equal Tee uses in Heating |
| SS 317/317L Screwed Unequal Cross uses in Water Supply Systems |
| ASTM A182 317/317L Steel Forged Fittings uses in Power Plant |
| SS 317/317L Socketweld Fittings uses in Paper & Pulp Industry |
| SS 317/317L Threaded Fittings uses in Defence Industry |
| SS 317/317L Forged Union uses in Construction industry |
