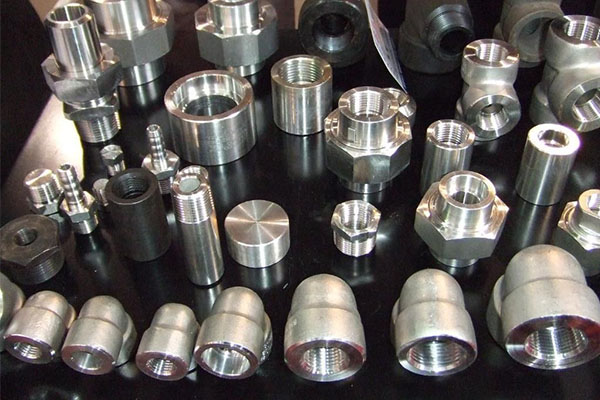

Available Forms of SS 304 Forged Fittings

Stainless Steel 304 Forged Fittings Specification

Specifications : ASTM / ASME A182 / SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.

Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)

Class/Pressure : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

B16.11 Stainless Steel 304 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18-09 X5CrNi18-10

ASTM A182 SS 304 Forged Fittings Chemical Composition

Element SS 304
C 0.08 max
Mn 2 max
Si 0.75 max
P 0.045 max
S 0.030 max
Cr 18 – 20
Ni 8 – 11

Stainless Steel S30400 Forged Fittings Mechanical & Physical Properties

Element SS 304
Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Stainless Steel 304 Forged Fittings Application

SS 304 Forged Fittings in various Application Industries
  Stainless Steel 304 Forged Fittings uses in Food Processing Industry
  Stainless Steel 304 Socketweld Fittings uses in Fabrication Industry
  Stainless Steel 304 Forged Fittings uses in Oil and Gas Industry
  UNS S30400 SS Forged Threaded Elbow uses in Chemical Industry
  Grade 304 Stainless Steel Forged Fittings uses in Plumbing
  304 SS Screwed Fittings uses in General Purpose Applications
  Stainless Steel 304 Socketweld Equal Tee uses in Heating
  SS 304 Screwed Unequal Cross uses in Water Supply Systems
  ASTM A182 304 Steel Forged Fittings uses in Power Plant
  SS 304 Socketweld Fittings uses in Paper & Pulp Industry
  SS 304 Threaded Fittings uses in Defence Industry
  SS 304 Forged Union uses in Construction industry
