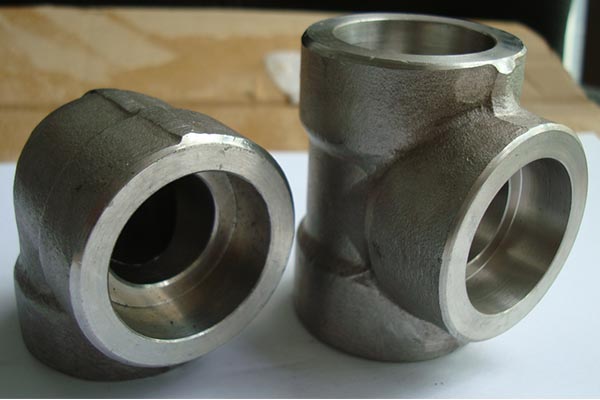

Available Forms of Titanium Alloy Forged Fittings

Titanium Forged Fittings Specification

Specifications : ASTM / ASME B381 / SB381

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.

Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)

Class/Pressure : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

B16.11 Titanium Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Titanium Gr2 3.7035 R50400
Titanium Gr5 3.7165 R56400
Titanium Gr7 3.7235 R52400

ASTM B381 Titanium Alloy Forged Fittings Chemical Composition

Element Titanium Gr2 Titanium Gr5 Titanium Gr7
C 0.01 max 0.01 max 0.02 max
Mn 0.50 max 1.0 max 1.0 max
Si 0.08 max 0.08 max 0.1 max
S 0.02 max 0.03 max 0.03 max
Cr 20 – 22.5 14.5 – 16.5 1.0 max
Fe 2 – 6 4 – 7 2.0 max
Mo 12.5 – 14.5 15 – 17 26 – 30
Co 2.5 max 2.5 max 1.0 max
W 2.5 – 3.5 3 – 4.5 -
v 0.35 max 0.35 max -
P 0.02 max 0.04 max 0.04 max
Ni Bal Bal Bal

Titanium Forged Fittings Mechanical & Physical Properties

Element Titanium Gr2 Titanium Gr5
Density 4.5 g/cm3 4.43 g/cm3
Melting Point 1665 °C (3030 °F) 1632 °C (2970 °F)
Tensile Strength Psi – 49900 , MPa – 344 Psi – 138000 , MPa – 950
Yield Strength (0.2%Offset) Psi – 39900 , MPa – 275 Psi – 128000 , MPa – 880
Elongation 20 % 14 %

Titanium Forged Fittings Application

Titanium Forged Fittings in various Application Industries
  Titanium Forged Fittings uses in Food Processing Industry
  Titanium Socketweld Fittings uses in Fabrication Industry
  Titanium Gr2 Forged Fittings uses in Oil and Gas Industry
  UNS R50400 Titanium Forged Threaded Elbow uses in Chemical Industry
  Grade Gr5 Titanium Forged Fittings uses in Plumbing
  Gr7 Titanium Screwed Fittings uses in General Purpose Applications
  Titanium Alloy Socketweld Equal Tee uses in Heating
  Titanium Alloy Screwed Unequal Cross uses in Water Supply Systems
  ASTM B381 Gr2 Forged Fittings uses in Power Plant
  Titanium Alloy Socketweld Fittings uses in Paper & Pulp Industry
  Titanium Threaded Fittings uses in Defence Industry
  Titanium Forged Union uses in Construction industry
