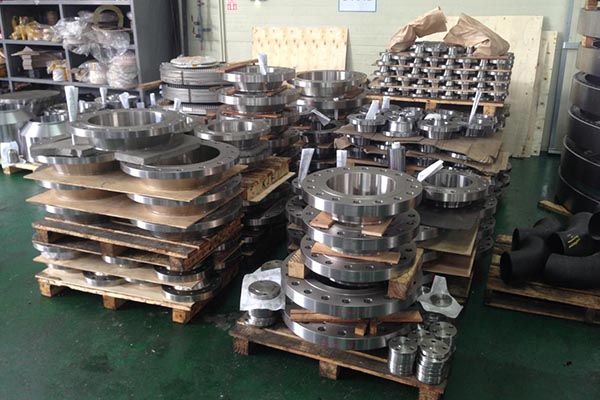

Available Forms of Titanium Alloy Flanges

Titanium Flanges Specification

Specifications : ASTM / ASME B381 / SB381

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

B16.5 Titanium Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Titanium Gr2 3.7035 R50400
Titanium Gr5 3.7165 R56400
Titanium Gr7 3.7235 R52400

ASTM B381 Titanium Flanges Chemical Composition

Element Titanium Gr2 Titanium Gr5 Titanium Gr7
C 0.01 max 0.01 max 0.02 max
Mn 0.50 max 1.0 max 1.0 max
Si 0.08 max 0.08 max 0.1 max
S 0.02 max 0.03 max 0.03 max
Cr 20 – 22.5 14.5 – 16.5 1.0 max
Fe 2 – 6 4 – 7 2.0 max
Mo 12.5 – 14.5 15 – 17 26 – 30
Co 2.5 max 2.5 max 1.0 max
W 2.5 – 3.5 3 – 4.5 -
v 0.35 max 0.35 max -
P 0.02 max 0.04 max 0.04 max
Ni Bal Bal Bal

Titanium R50400 Flanges Mechanical & Physical Properties

Element Titanium Gr2 Titanium Gr5
Density 4.5 g/cm3 4.43 g/cm3
Melting Point 1665 °C (3030 °F) 1632 °C (2970 °F)
Tensile Strength Psi – 49900 , MPa – 344 Psi – 138000 , MPa – 950
Yield Strength (0.2%Offset) Psi – 39900 , MPa – 275 Psi – 128000 , MPa – 880
Elongation 20 % 14 %

Titanium Alloy Flanges Application

Titanium Flanges in various Application Industries
  Titanium Flanges uses in Food Processing Industry
  Titanium Welded Flanges uses in Fabrication Industry
  Titanium Gr2 Flanges uses in Oil and Gas Industry
  UNS R50400 Titanium Slip on Flanges uses in Chemical Industry
  Grade Gr5 Titanium Alloy Flanges uses in Plumbing
  Titanium Flanges uses in General Purpose Applications
  Titanium Alloy Gr7 Blind Flanges uses in Heating
  Titanium Orifice Flanges uses in Water Supply Systems
  ASTM B381 Titanium Alloy Flanges uses in Power Plant
  Titanium Forged Flanges uses in Paper & Pulp Industry
  Titanium Threaded Flanges uses in Defence Industry
  Titanium Loose Flanges uses in Construction industry
