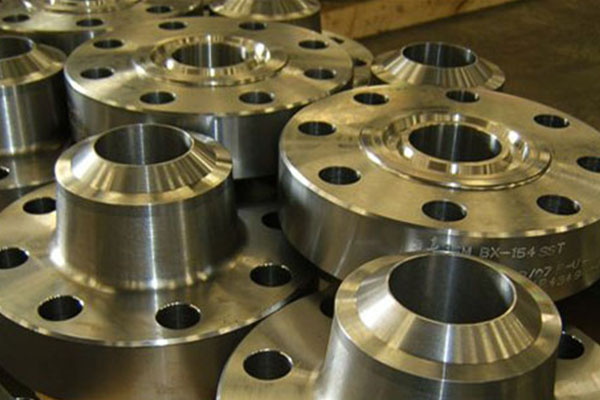

Available Forms of SS 317/317L Flanges

Stainless Steel 317/317L Flanges Specification

Specifications : ASTM / ASME A182 / SA182

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

B16.5 Stainless Steel 317/317L Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317 1.4449 S31700 SUS 317 -
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

ASTM A182 SS 317/317L Flanges Chemical Composition

Element SS 317 SS 317L
C 0.08 max 0.035 max
Mn 2 max 2 max
Si 1 max 1 max
P 0.045 max 0.045 max
S 0.030 max 0.030 max
Cr 18 - 20 18 - 20
Ni 11 - 15 11 - 15
Mo 3 - 4 3 - 4
Fe 57.845 min 57.89 min

Stainless Steel S31700-S31703 Flanges Mechanical & Physical Properties

Element SS 317/317L
Density 8.0 g/cm3
Melting Point 1455°C (2650°F)
Tensile Strength Psi – 89900 , MPa – 620
Yield Strength (0.2%Offset) Psi – 45000 , MPa – 310
Elongation 45 %

Stainless Steel 317/317L Flanges Application

SS 317/317L Flanges in various Application Industries
  Stainless Steel 317/317L Flanges uses in Food Processing Industry
  Stainless Steel Welded 317/317L Flanges uses in Fabrication Industry
  Stainless Steel 317/317L Flanges uses in Oil and Gas Industry
  S31703 SS Slip on Flanges uses in Chemical Industry
  Grade 317/317L Stainless Steel Flanges uses in Plumbing
  317/317L SS Flanges uses in General Purpose Applications
  Stainless Steel 317/317L Blind Flanges uses in Heating
  SS 317/317L Orifice Flanges uses in Water Supply Systems
  ASTM A182 317/317L Stainless Steel Flanges uses in Power Plant
  SS 317/317L Forged Flanges uses in Paper & Pulp Industry
  SS 317/317L Threaded Flanges uses in Defence Industry
  SS 317/317L Loose Flanges uses in Construction industry
