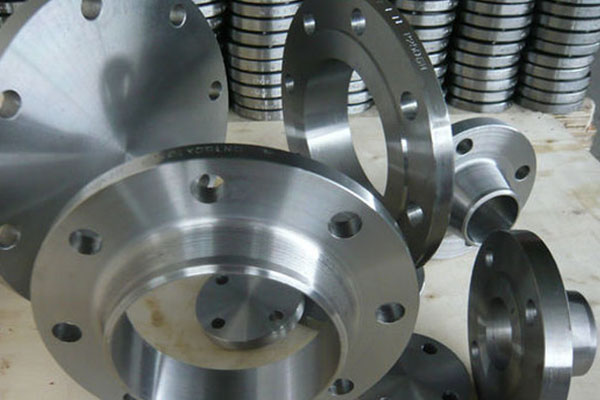

Available Forms of SS 316H Flanges

Stainless Steel 316H Flanges Specification

Specifications : ASTM / ASME A182 / SA182

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

B16.5 Stainless Steel 316H Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS
SS 316H 1.4401 S31609

ASTM A182 SS 316H Flanges Chemical Composition

Element SS 316H
C 0.10 max
Mn 2 max
Si 0.75 max
P 0.045 max
S 0.030 max
Cr 16 - 18
Mo 2 - 3
Ni 10 - 14
N 68.89 min

Stainless Steel S31609 Flanges Mechanical & Physical Properties

Element SS 316H
Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35 %

Stainless Steel 316H Flanges Application

SS 316H Flanges in various Application Industries
  Stainless Steel 316H Flanges uses in Food Processing Industry
  Stainless Steel Welded 316H Flanges uses in Fabrication Industry
  Stainless Steel 316H Flanges uses in Oil and Gas Industry
  S31609 SS Slip on Flanges uses in Chemical Industry
  Grade 316H Stainless Steel Flanges uses in Plumbing
  316H SS Flanges uses in General Purpose Applications
  Stainless Steel 316H Blind Flanges uses in Heating
  SS 316H Orifice Flanges uses in Water Supply Systems
  ASTM A182 316H Stainless Steel Flanges uses in Power Plant
  SS 316H Forged Flanges uses in Paper & Pulp Industry
  SS 316H Threaded Flanges uses in Defence Industry
  SS 316H Loose Flanges uses in Construction industry
