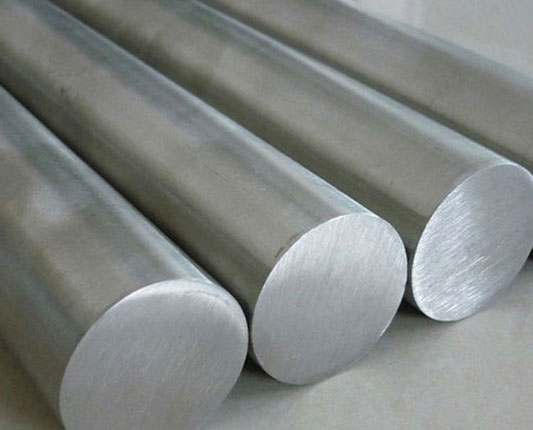

This Inconel 800/800H/800HT Round Bar is also known as the orange peel bars. They have excellent quality in terms of alloy formation as they are a combination of nickel and chromium. They have good strength in terms of resistance from corrosion and side by side provide you with good mechanical properties which make them long-lasting. Due to only 0.05% to 0.10% of carbon composition, they have high workability in the temperature range of 2200F and above and they can remain stable in these extreme conditions of temperatures. Though they are normally used below temperatures of 600F but for above this they provide good creep properties which widen their range of working.
You don’t have to wonder about giving mixed products or of lesser quality because all the products are specified with standards of ASTM, EN, DIN, JIS, and ASME. And when it comes to specifications they have ASTM B408 and ASTM SB408 which put all the doubts away. Then one also wonders about getting the required size so these bars come in size from 5mm to 500mm with a diameter of 0.1mm to 100mm and always can be custom made as per your requirements.
And not only size their shape could also be costumed in various varieties of round, square, hex, rectangle, billet and forging. These all varieties of Inconel 800/800H/800HT Round Bar are available only at Lanco Pipe and Fittings. With so many varieties to choose from one could always trust them in terms of quality and testing as they provide the only authentic product.
Incoloy 800 Round Bars Specification
Specifications : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 5 mm To 500 mm
Standard : ASTM B408 / ASME SB408
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Diameter : 0.1 mm to 100 mm
Length : 100 mm To 3000 mm Long & Abov
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Incoloy 800/800H/800HT Round Bars Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
ASTM B408 Incoloy Alloy 800 Round Bar Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Incoloy 800/800H Round Bar Mechanical & Physical Properties
| Element | Alloy 800 / 800H / 800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
Incoloy 800/800H/800HT Round Bar Application
| Incoloy 800 Bars uses in Food Processing Industry |
| Incoloy 800H Round Bar uses in Fabrication Industry |
| Incoloy 800HT Round Rod uses in Oil and Gas Industry |
| Incoloy 800H Hot Rolled Bars uses in Chemical Industry |
| Alloy 800HT Rods uses in Plumbing |
| Incoloy 800H Grade F9 Bars uses in General Purpose Applications |
| Incoloy 800 Round Bars uses in Heating |
| Alloy 800HT Round Rod uses in Water Supply Systems |
| Incoloy 800 Round Bar uses in Power Plant |
| Alloy 800H Square Bars uses in Paper & Pulp Industry |
| Incoloy Cold Finished Bars uses in Defence Industry |
| Alloy 800HT Round Bar uses in Construction industry |
