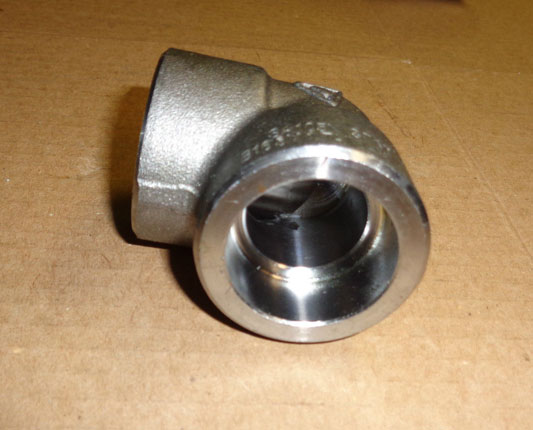

Inconel 600 Forged 90 Deg Elbow |
Inconel 600 Forged 45 Deg Elbow |

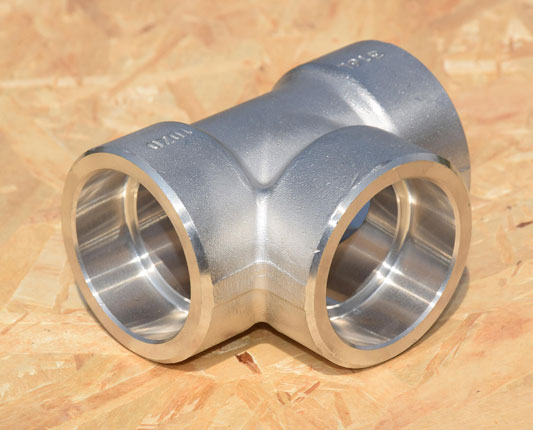

Inconel 600 Socket Weld Tee |

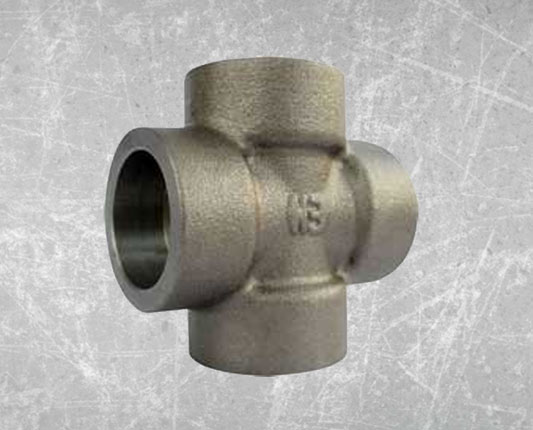

Alloy 600 Socket Weld Cross |

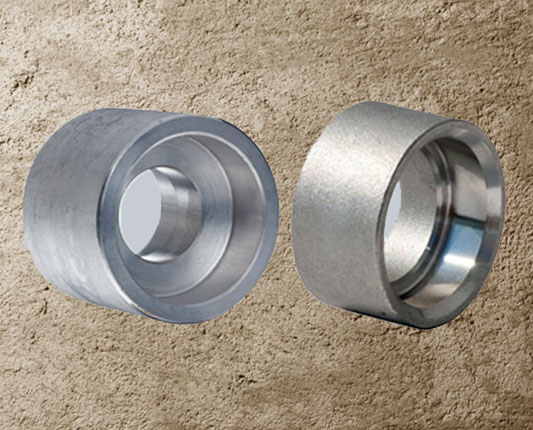

Inconel N06600 Forged Coupling |

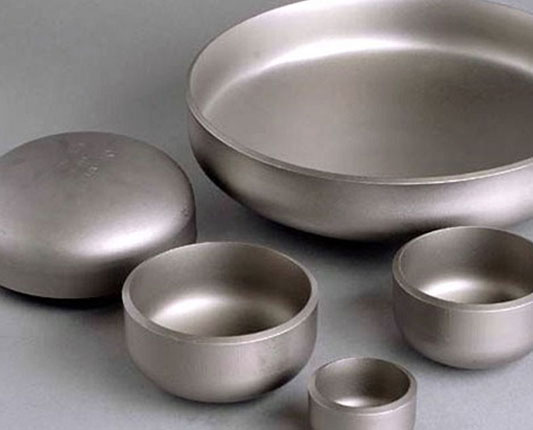

Inconel 600 Forged Cap Exporter |
Alloy 600 Screwed Street Elbow |

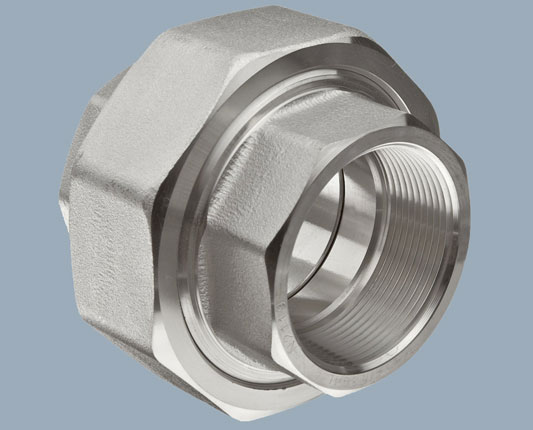

Alloy 600 Threaded Union Stockist |
Alloy 600 Steel End Cap |
Alloy 600 Screwed Pipe Nipple |
Inconel 600 Threaded Hex Plug |
Inconel 600 Threaded Bushing |
The Inconel 600 Forged Fittings is a mixture of nickel, chromium and molybdenum Alloy which makes them unique from their competitors’ equipment. This provides the high strength at very elevated temperature rise and sudden heating conditions. And that is why they can be used for temperature ranging from cryogenic to a steep of 2200F and they will also be durable in a vivid variety of environments for providing better services. As they have good resistance for corrosion, high withstanding for strength and chemicals, they are used as the first choice of a variety of different industries.
They are always manufactured with international standards which automatically qualify them as national standards. But they are still specified with specifications of AMS 5714, ASTM B168 EN2.4851, and UNS N06601. These standards will make you tension free for their quality and you could use them for your services. They are also available in various sizes as per the requirements of the customers. The most common size available is ¼” to 4” and with a dimension of ANSI/ASME B16.11 & BS3799.
They are packed in a union, full or half couplings forms depending upon the type you order along with 45 and 90-degree cross plug options to choose from. So if you are planning to buy these Inconel 600 Forged Fittings and looking for any trusted source you can opt for Lanco Pipe and Fittings. They are sure to provide you with good products and that too at affordable prices and best quality. So don’t wait and place your order today.
Specifications : ASTM / ASME SB 564 / 160 / 472
Dimensions : ANSI/ASME B16.11 & BS3799, etc
Size : ⅛” to 4”
Class/Pressure : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Alloy 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
Element | Alloy 600 |
C | 0.15 max |
Mn | 1.00 max |
Si | 0.50 max |
Cu | 0.50 max |
S | 0.015max |
Cr | 14.00 – 17.00 |
Ni | 72.00 min |
Element | Alloy 600 |
Density | 8.47 g/cm3 |
Melting Point | 1413 °C (2580 °F) |
Tensile Strength | Psi – 95,000 , MPa – 655 |
Yield Strength (0.2%Offset) | Psi – 45,000 , MPa – 310 |
Elongation | 40 % |
Inconel 600 Forged Fittings uses in Food Processing Industry |
Inconel 600 Socketweld Fittings uses in Fabrication Industry |
Inconel 600 Forged Fittings uses in Oil and Gas Industry |
UNS N06600 Inconel Forged Threaded Elbow uses in Chemical Industry |
Grade 600 Inconel Forged Fittings uses in Plumbing |
600 Inconel Screwed Fittings uses in General Purpose Applications |
Inconel 600 Socketweld Equal Tee uses in Heating |
Alloy 600 Screwed Unequal Cross uses in Water Supply Systems |
ASTM B564 Forged Fittings uses in Power Plant |
Alloy 600 Socketweld Fittings uses in Paper & Pulp Industry |
Alloy 600 Threaded Fittings uses in Defence Industry |
Alloy 600 Forged Union uses in Construction industry |
