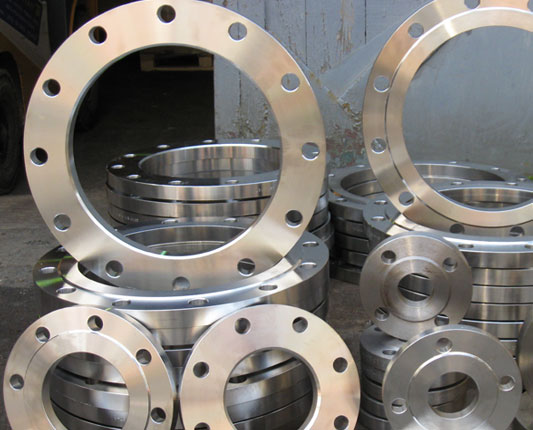

The Inconel 800/800H/800HT Flanges are those which are made up of an alloy from nickel as major proportion and titanium and aluminum supporting metals. These two metals make it good in resistance to oxidation corrosion, and alkali metals damage. And not only this, they also had strength and tension and stress in the cryogenic environment which makes them durable up to 1200F of temperature. These flanges’ have vivid qualities which make them compatible with us in electrical, mechanical and chemical industries with an addition to aqueous atmosphere usage. And if you are looking for making a purchase of same, then you could do that from Lanco Pipe and Fittings as they will provide you with the best quality at very affordable prices.
These flanges hold true to specifications of ASTM B166 and ASME SB 166 with threaded welding an also non-threaded wielding. They are available with threads of NPT, BSPT, and BSPP. These above-mentioned specifications will make them qualify all national and international standards. And if you are worried about size then you will have assize range of 1/16” to 2” and also comes with an option of custom size threads.
Everyone worries whether the product will be delivered would be tested in quality or not. But these Inconel 800/800H/800HT Flanges are tested with a sulfide stress corrosion cracking test, Dye penetrant test, all mechanical standard tests, hydrostatic test and eddy current test. We provide you with shrink-wrapped backing in wooden boxes along with carton boxes so that its quality could be maintained. This also ensures safety from any possible damage.
Incoloy 800/800H/800HT Flanges Specification
Specifications : ASTM / ASME B564 / SB564
Dimensions : ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : ½” NB to 12” NB
Class/Pressure : 150 LBS, 300 LBS, 800 LBS, 900 LBS, 1500 LBS, 2500 LBS , ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc
Incoloy 800/800H/800HT Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
ASTM B564 Incoloy Alloy 800 Flanges Chemical Composition
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Incoloy N08800 / N08810 / N08811 Flanges Mechanical & Physical Properties
| Element | Alloy 800 / 800H / 800HT |
| Density | 7.94 g/cm3 |
| Melting Point | 1385 °C (2525 °F) |
| Tensile Strength | Psi – 75,000 , MPa – 520 |
| Yield Strength (0.2%Offset) | Psi – 30,000 , MPa – 205 |
| Elongation | 30 % |
Incoloy 800/800H/800HT Flanges Application
| Incoloy 800 Flanges uses in Food Processing Industry |
| Incoloy Flanges uses in Fabrication Industry |
| Incoloy 800 Flanges uses in Oil and Gas Industry |
| N08800 / N08810 / N08811 Incoloy Slip on Flanges uses in Chemical Industry |
| Grade 800 Incoloy Flanges uses in Plumbing |
| 600 Incoloy Flanges uses in General Purpose Applications |
| Incoloy 800 Blind Flanges uses in Heating |
| Incoloy Alloy 800 Orifice Flanges uses in Water Supply Systems |
| ASTM B564 Incoloy Flanges uses in Power Plant |
| Incoloy Alloy 800 Forged Flanges uses in Paper & Pulp Industry |
| Incoloy Alloy 800 Threaded Flanges uses in Defence Industry |
| Incoloy Alloy 800 Loose Flanges uses in Construction industry |
