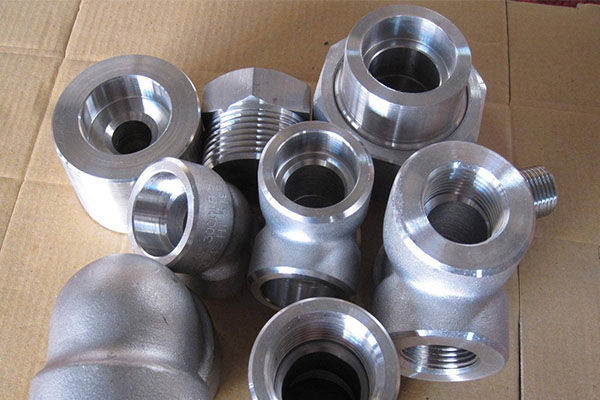

Available Forms of Duplex S31803 / S32205 Forged Fittings

Duplex Steel S31803 / S32205 Forged Fittings Specification

Specifications : ASTM / ASME A182 / SA182

Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799.

Size : 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)

Class/Pressure : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Type : Socketweld Fittings, Screwed-Threaded Fittings

B16.11 Duplex Steel S31803 / S32205 Forged Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Duplex Steel 1.4462 S31803 / S32205

ASTM A182 Duplex S31803 / S32205 Forged Fittings Chemical Composition

Element S31803 S32205
C 0.03 max 0.03 max
Mn 2 max 2 max
Si 1 max 1 max
P 0.03 max 0.03 max
S 0.02 max 0.02 max
Cr 22 – 23 21 – 23
Mo 3.0 – 3.5 2.5 - 3.5
Ni 4.5 – 6.5 4.5 – 6.5
N 0.14 – 0.20 0.8 – 0.20
Fe 63.72 min 63.54 min

Duplex Steel S31803 / S32205 Forged Fittings Mechanical & Physical Properties

Element Duplex Steel
Density 7.8 g/cm3
Melting Point 1350 °C (2460 °F)
Tensile Strength Psi – 80000 , MPa – 550
Yield Strength (0.2%Offset) Psi – 116000 , MPa – 800
Elongation 15 %

Duplex Steel S31803 / S32205 Forged Fittings Application

Duplex S31803 / S32205 Forged Fittings in various Application Industries
  Duplex Steel S31803 Forged Fittings uses in Food Processing Industry
  Duplex Steel S32205 Socketweld Fittings uses in Fabrication Industry
  Duplex Steel S31803 Forged Fittings uses in Oil and Gas Industry
  UNS S32205 Duplex Forged Threaded Elbow uses in Chemical Industry
  UNS S31803 Duplex Steel Forged Fittings uses in Plumbing
  S32205 Duplex Screwed Fittings uses in General Purpose Applications
  Duplex Steel S31803 Socketweld Equal Tee uses in Heating
  Duplex S32205 Screwed Unequal Cross uses in Water Supply Systems
  ASTM A182 S31803 Steel Forged Fittings uses in Power Plant
  Duplex S32205 Socketweld Fittings uses in Paper & Pulp Industry
  Duplex S31803 Threaded Fittings uses in Defence Industry
  Duplex UNS S32205 Forged Union uses in Construction industry
