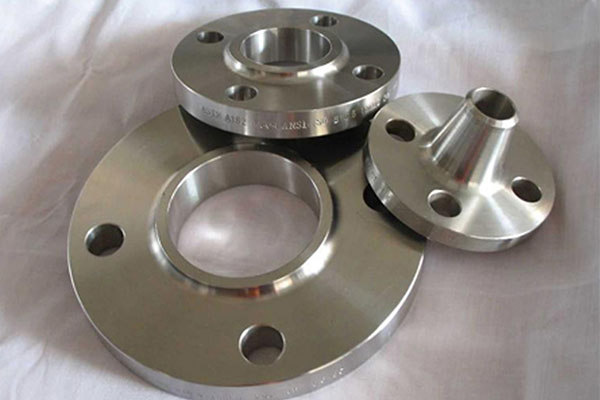

Available Forms of Duplex S31803 / S32205 Flanges

Duplex Steel S31803 / S32205 Flanges Specification

Specifications : ASTM / ASME A182 / SA182

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

B16.5 Duplex Steel S31803 / S32205 Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Duplex Steel 1.4462 S31803 / S32205

ASTM A182 Duplex S31803 / S32205 Flanges Chemical Composition

Element S31803 S32205
C 0.03 max 0.03 max
Mn 2 max 2 max
Si 1 max 1 max
P 0.03 max 0.03 max
S 0.02 max 0.02 max
Cr 22 – 23 21 – 23
Mo 3.0 – 3.5 2.5 - 3.5
Ni 4.5 – 6.5 4.5 – 6.5
N 0.14 – 0.20 0.8 – 0.20
Fe 63.72 min 63.54 min

Duplex Steel S31803 / S32205 Flanges Mechanical & Physical Properties

Element Duplex Steel
Density 7.8 g/cm3
Melting Point 1350 °C (2460 °F)
Tensile Strength Psi – 80000 , MPa – 550
Yield Strength (0.2%Offset) Psi – 116000 , MPa – 800
Elongation 15 %

Duplex Steel S31803 / S32205 Flanges Application

Duplex S31803 / S32205 Flanges in various Application Industries
  Duplex Steel S32205 Flanges uses in Food Processing Industry
  Duplex Steel Welded S31803 Flanges uses in Fabrication Industry
  Duplex Steel S32205 Flanges uses in Oil and Gas Industry
  S31803 Duplex Slip on Flanges uses in Chemical Industry
  UNS S32205 Duplex Steel Flanges uses in Plumbing
  S32205 Duplex Flanges uses in General Purpose Applications
  Duplex Steel S31803 Blind Flanges uses in Heating
  Duplex S31803 Orifice Flanges uses in Water Supply Systems
  ASTM A182 S32205 Duplex Steel Flanges uses in Power Plant
  Duplex S31803 Forged Flanges uses in Paper & Pulp Industry
  Duplex S32205 Threaded Flanges uses in Defence Industry
  Duplex S31803 Loose Flanges uses in Construction industry
