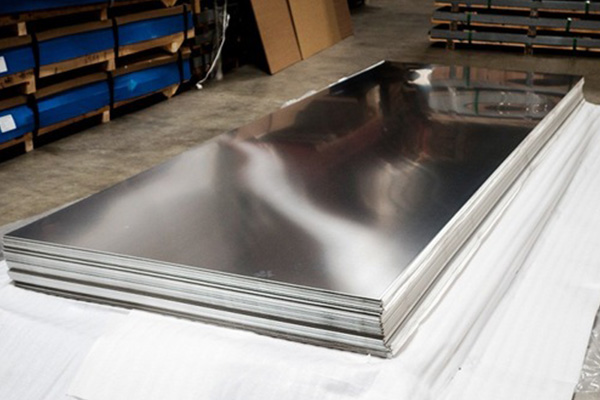

The Alloy 20 Sheets, plates, coils all are made up of alloy, which has an iron base as the main composition. Iron is used in these plates and sheets because they provide resistance too many corrosive properties. The alloy 20 coils made have phenomenal withstanding against ranging erosion, crevice erosion and even against chemicals like phosphoric, nitric, and sulphuric acids. Due to their plus columbium nature, they are also useful in environments of eroding atmospheres where products are deprived of welding heat. On the other hand, alloy 20 plates fall under both nickels as well as the stainless group due to their coverage of properties in both the ranges.
These alloy 20 plates have following specifications that make them nationally as well as internationally, acknowledged. They hold their specifications in ASTM B463, ASME SB 463, and AISI. Their dimensions include ASTM, ASME & API. One does not need to worry about getting the required size and dimensions because of their wide range availability. They are available in size of 15NB to 120NB inches with a thickness range of 0.3mm to 120mm. when it comes to standard of hardness it is available in soft, hard, half-hard, quarter hard, spring hard etc.
Making a good product is as important as maintaining the standard quality in which they are manufactured. To ensure these Alloy 20 Sheets, plates, coils undergo all the quality control tests. Even at the time of delivery we use good wooden and shrink wrapped crates and boxes as these products have to through various channels before reaching their destination.
Alloy 20 Sheet Plate and Coils Specification
Standard : ASTM / ASME B463 / SB463
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Alloy 20 Sheet Plate and Coils Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
ASTM B463 Alloy 20 Sheet Plate and Coils Chemical Composition
| Element | Alloy 20 |
| C | 0.02 max |
| Mn | 1 - 2 |
| Si | 0.7 max |
| S | 0.005 max |
| Cu | 3 - 4 |
| Fe | Bal |
| Ni | 32 - 38 |
| Mo | 2 - 3 |
| P | 0.02 max |
| Nb | 0.1 - 0.3 |
Alloy 20Cb-3 Sheet Plate and Coils Mechanical & Physical Properties
| Element | Alloy 20 |
| Density | 8.1 g/cm3 |
| Melting Point | 1443 °C (2430 °F) |
| Tensile Strength | Psi -80,000, MPa -551 |
| Yield Strength (0.2%Offset) | Psi - 35,000, MPa - 241 |
| Elongation | 30 % |
Alloy 20 Sheet Plate and Coils Application
| Alloy 20 Sheets uses in Food Processing Industry |
| Carpenter 20 Plate uses in Fabrication Industry |
| Alloy 20 Sheet uses in Oil and Gas Industry |
| UNS N08020 Alloy 20 Shim Sheet uses in Chemical Industry |
| Alloy 20 Sheet & Plate uses in Plumbing |
| Alloy 20Cb-3 Foils uses in General Purpose Applications |
| Carpenter 20 HR Plates uses in Heating |
| Alloy 20 Hot Rolled Plates uses in Water Supply Systems |
| ASTM B463 Alloy 20 Coils uses in Power Plant |
| Alloy 20 Cold Rolled Plates uses in Paper & Pulp Industry |
| Alloy 20Cb-3 Circle uses in Defence Industry |
| Incoloy 20 Profile uses in Construction industry |
