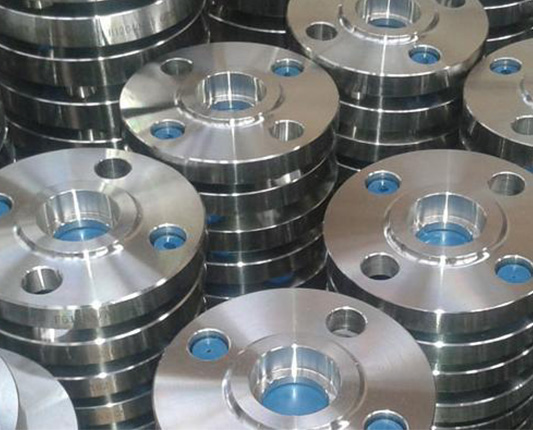

| Monel K500 Socket Weld Flanges |
| Monel K500 Forged Flanges Exporter |
| Monel K500 Ring Type Joint Flanges |
| Monel N05500 Orifice Flanges |
| Monel K500 High Tensile Flanges |
| Monel K500 Loose Flanges |
| Monel K500 Screwed Flange |
| Monel K500 High Hub blind flanges |
| Monel K500 Spectacle Blind Flanges Dealer |
The Monel k500 flanges are the most desired flanges of today. They are created by using the stainless steel metal alloys. It is basically a nickel-copper alloy product having much higher resistance towards corrosion. These flanges are also having greater hardness and better strength. The reason for having better hardness is the presence of greater aluminum and titanium.
The specifications of Monel K500 flanges are
The Lanco pipes are providing the best range Monel K500 Flanges in all standards of dimensions and quality. They are having large variety flanges and can provide you with the type you require.
Monel K500 Flanges Specification
Specifications : ASTM / ASME B564 / SB564
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2" (15 NB) to 48" (1200NB)
Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange
B16.5 Monel K500 Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
ASTM B564 Monel Alloy K500 Flanges Chemical Composition
| Element | Monel K500 |
| C | 0.25 max |
| Mn | 1.5 max |
| Si | 0.5 max |
| S | 0.010 max |
| Cu | 27 – 33 |
| Fe | 0.5 – 2 |
| Ni | 63.00 min |
Monel N05500 Flanges Mechanical & Physical Properties
| Element | Monel K500 |
| Density | 8.44 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 160000 , MPa – 1100 |
| Yield Strength (0.2%Offset) | Psi – 115000 , MPa – 790 |
| Elongation | 20 % |
Monel K500 Flanges Application
| Monel K500 Flanges uses in Food Processing Industry |
| Monel Welded K500 Flanges uses in Fabrication Industry |
| Monel K500 Flanges uses in Oil and Gas Industry |
| UNS N05500 Monel Slip on Flanges uses in Chemical Industry |
| Grade K500 Monel Alloy Flanges uses in Plumbing |
| K500 Monel Flanges uses in General Purpose Applications |
| Monel Alloy K500 Blind Flanges uses in Heating |
| Monel K500 Orifice Flanges uses in Water Supply Systems |
| ASTM B564 K500 Monel Alloy Flanges uses in Power Plant |
| Monel K500 Forged Flanges uses in Paper & Pulp Industry |
| Monel K500 Threaded Flanges uses in Defence Industry |
| Monel K500 Loose Flanges uses in Construction industry |
