Available Forms of Beryllium Copper Alloy Flanges

Beryllium Copper Alloy Flanges Specification

Specifications : ASTM / ASME B196 / SB196

Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Size : 1/2" (15 NB) to 48" (1200NB)

Class/Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

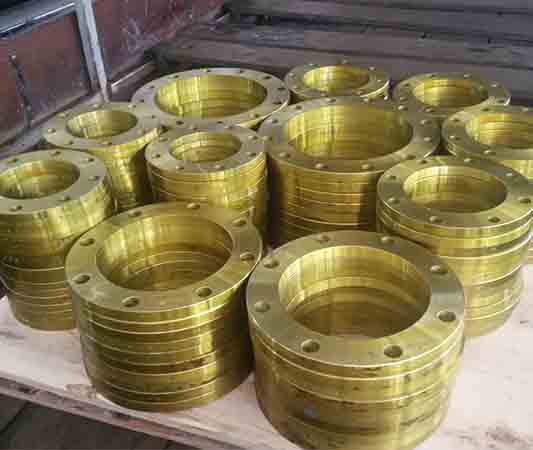

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

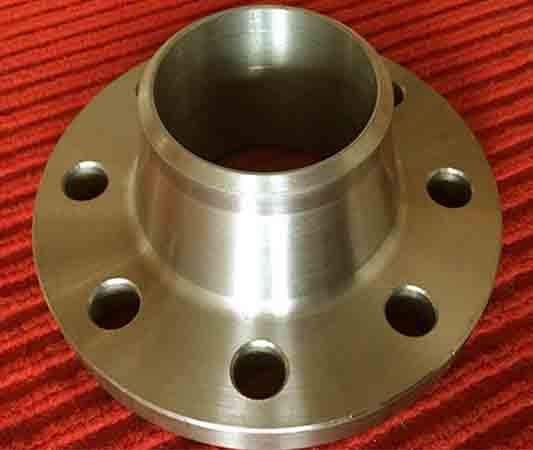

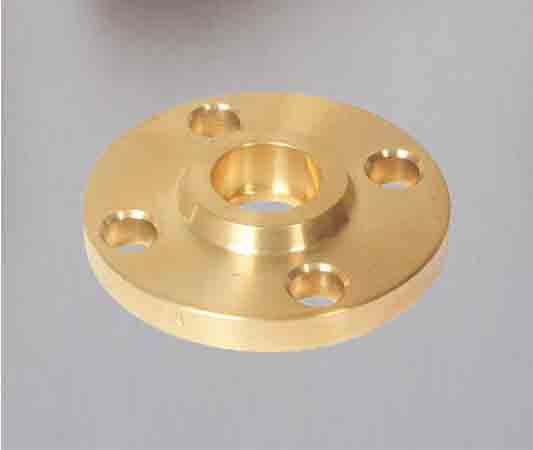

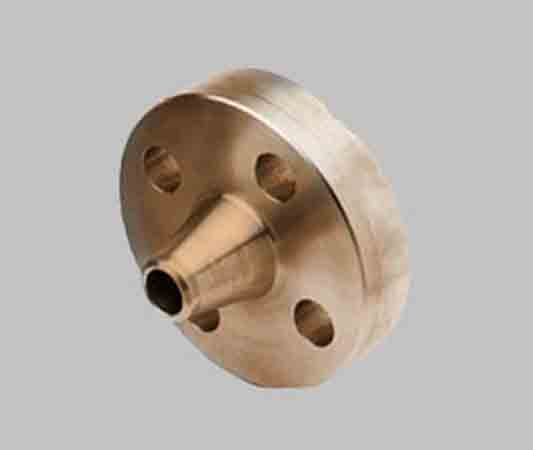

Form : Slip on flanges, Socket weld flanges, Forged flanges, Blind flanges, Welding neck flange, Ring type joint flange, Spectacle blind flange, Reducing flange, Threaded / Screwed flange, Tongue and Groove flange, Long weld neck flange, Plate flange, ASME B16.5 flange

B16.5 Beryllium Copper Alloy Flanges Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Beryllium Copper Alloy 2.1247 C17200

ASTM B196 Alloy 172 Flanges Chemical Composition

Element Beryllium Copper Alloy
Be 1.6-1.85
Co+Ni 0.2 min
Co+Ni+Fe 0.6 max
Al 0.2 max
Si 0.2 max
Cu Bal

Beryllium Copper Alloy C17200 Flanges Mechanical & Physical Properties

Element Beryllium Copper Alloy
Density 8.41
Melting Temperature(C) 870-980
Elastic Modulus(MPA) 131000
Thermal Expansion 17
Thermal Conductivity(w/(m.k) 105

Copper Beryllium Flanges Application

Beryllium Copper Alloy Flanges in various Application Industries
  Beryllium Copper Alloy Flanges uses in Food Processing Industry
  BeCu Welded Flanges uses in Fabrication Industry
  Copper Beryllium Flanges uses in Oil and Gas Industry

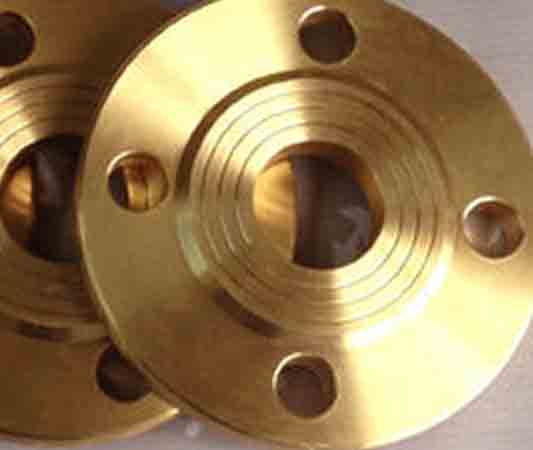

  UNS C17200 BeCu Slip on Flanges uses in Chemical Industry
  Beryllium Copper Alloy Flanges uses in Plumbing
  Alloy 172 Flanges uses in General Purpose Applications

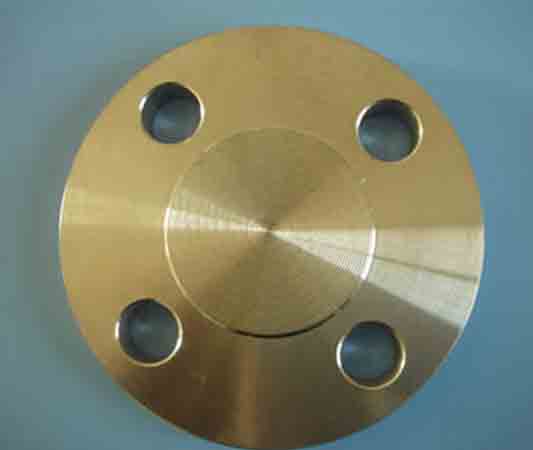

  Beryllium Copper Alloy Blind Flanges uses in Heating

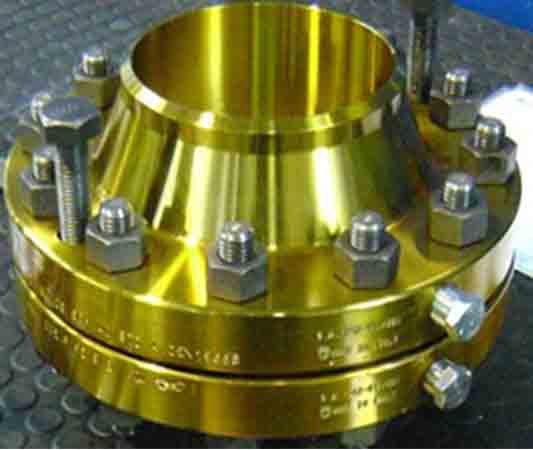

  Alloy 172 Orifice Flanges uses in Water Supply Systems
  ASTM B196 Beryllium Copper Alloy Flanges uses in Power Plant
  Beryllium Copper Alloy Forged Flanges uses in Paper & Pulp Industry

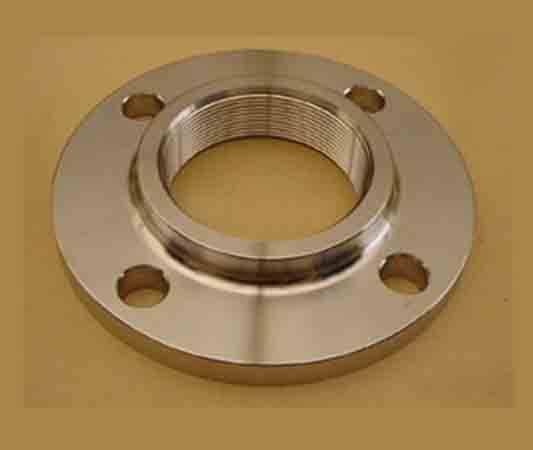

  Beryllium Copper Alloy Threaded Flanges uses in Defence Industry
  Beryllium Copper Alloy Loose Flanges uses in Construction industry
